Fig. 1 | Particle and Fibre Toxicology

Fig. 1

From: Particle characterization and toxicity in C57BL/6 mice following instillation of five different diesel exhaust particles designed to differ in physicochemical properties

Fig. 1

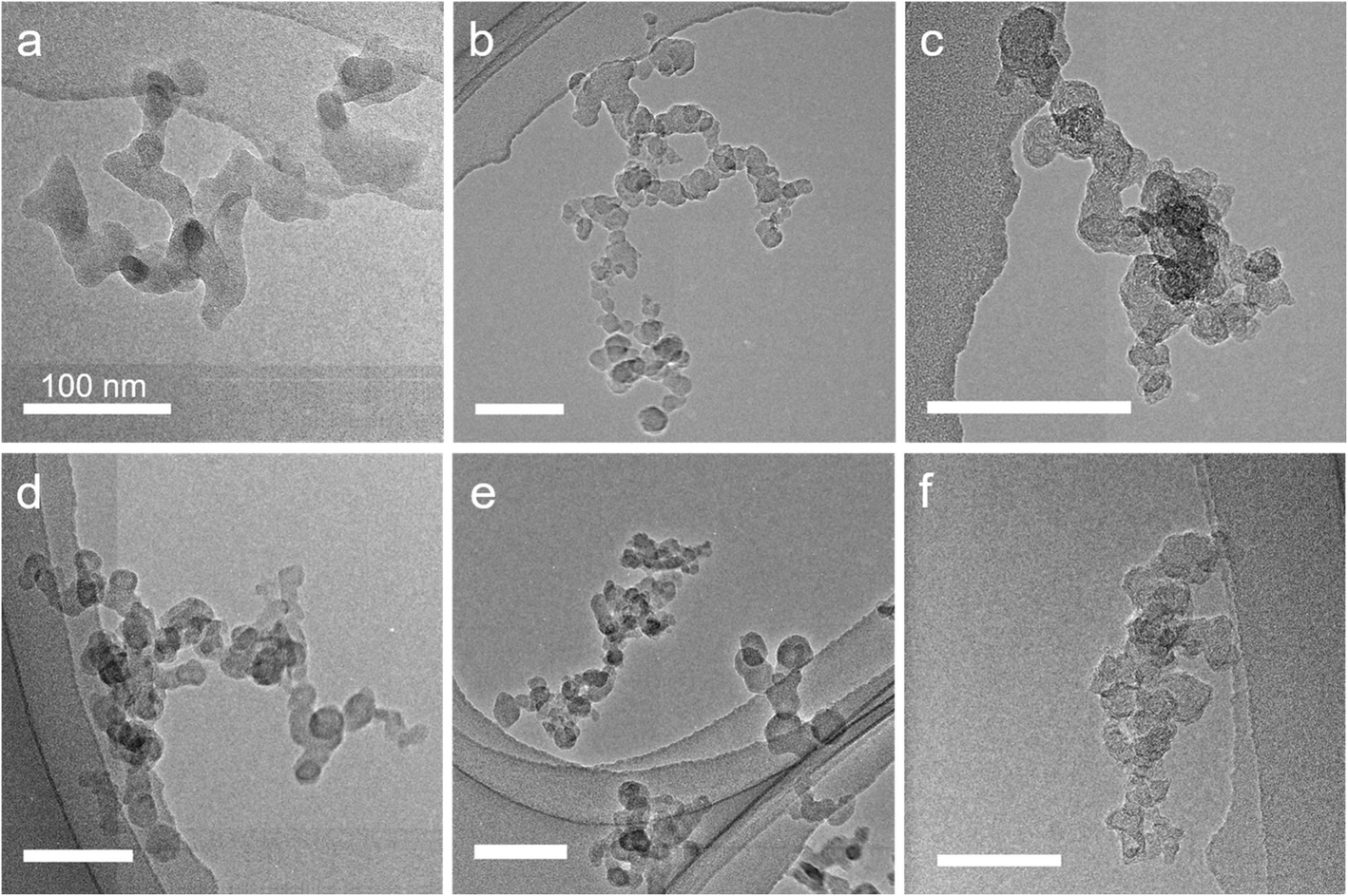

TEM images of DEP9.7 (a), DEP13 (b), and DEP17 (c), HVO13 (d), RME13 (e) and CB (f). The morphology of the particles generated with 13 and 17% O2 conditions (b, c, d, and e) are similar, while the soot agglomerates generated with 9.7% O2 (a) have less defined primary particles and appear more aggregated compared to the other samples
