Developmental basis for intestinal barrier against the toxicity of graphene oxide

Particle and Fibre Toxicology201815:26

https://doi.org/10.1186/s12989-018-0262-4

Received: 4 July 2017

Accepted: 21 May 2018

Published: 22 June 2018

Abstract

Background

Intestinal barrier is crucial for animals against translocation of engineered nanomaterials (ENMs) into secondary targeted organs. However, the molecular mechanisms for the role of intestinal barrier against ENMs toxicity are still largely unclear. The intestine of Caenorhabditis elegans is a powerful in vivo experimental system for the study on intestinal function. In this study, we investigated the molecular basis for intestinal barrier against toxicity and translocation of graphene oxide (GO) using C. elegans as a model animal.

Results

Based on the genetic screen of genes required for the control of intestinal development at different aspects using intestine-specific RNA interference (RNAi) technique, we identified four genes (erm-1, pkc-3, hmp-2 and act-5) required for the function of intestinal barrier against GO toxicity. Under normal conditions, mutation of any of these genes altered the intestinal permeability. With the focus on PKC-3, an atypical protein kinase C, we identified an intestinal signaling cascade of PKC-3-SEC-8-WTS-1, which implies that PKC-3 might regulate intestinal permeability and GO toxicity by affecting the function of SEC-8-mediated exocyst complex and the role of WTS-1 in maintaining integrity of apical intestinal membrane. ISP-1 and SOD-3, two proteins required for the control of oxidative stress, were also identified as downstream targets for PKC-3, and functioned in parallel with WTS-1 in the regulation of GO toxicity.

Conclusions

Using C. elegans as an in vivo assay system, we found that several developmental genes required for the control of intestinal development regulated both the intestinal permeability and the GO toxicity. With the focus on PKC-3, we raised two intestinal signaling cascades, PKC-3-SEC-8-WTS-1 and PKC-3-ISP-1/SOD-3. Our results will strengthen our understanding the molecular basis for developmental machinery of intestinal barrier against GO toxicity and translocation in animals.

Keywords

  • Graphene oxide
  • Intestinal barrier
  • Intestinal permeability
  • Molecular basis
  • PKC-3
  • Caenorhabditis elegans

Background

Graphene and its derivatives are two-dimensional carbon engineered nanomaterials (ENMs) with a single layer of sp2-bonded carbon atoms. They have the properties of chemical stability, high coefficient of thermal conduction, amphipathicity, large surface area, and ease of functionalization [1]. Graphene oxide (GO) is one of the important graphene derivatives. Due to its unique physical and chemical properties, GO is potentially applied in the fields of drug delivery, biosensor, and environmental remediation [25]. Considering the potential of increasing production and various applications [2], a large amount of GO would be released into the environment. In the recent years, the cytoxicity of GO in inducing oxidative stress, cell division inhibition, apoptosis, or mutagenicity has been observed in different human cell lines [610]. Additionally, at least pulmonary and reproductive toxicities could be detected in mammals [11, 12]. The GO distribution assay has further demonstrated the potential of GO translocation into different targeted organs, such as lung, liver, and kidney, in mammals [11, 13].

Caenorhabditis elegans is a widely used non-mammalian animal model for toxicity assessment and toxicological study of various toxicants, including the ENMs [1417]. Besides properties of short life-cycle and lifespan, transparent body, self-fertilization, and ease of culture [18], C. elegans has been shown to be very sensitive to environmental toxicants [14, 19, 20], and frequently used in toxicological study of different ENMs, including the GO [2127]. In C. elegans, GO exposure could cause toxic effects on the functions of both primary targeted organs (such as the intestine) and secondary targeted organs (such as the neurons and the reproductive organs) [22, 2833]. During the control of ENMs toxicity, bioavailability plays a crucial role in the toxicity induction of ENMs in nematodes [34, 35]. More importantly, intestinal barrier is very important for nematodes against ENMs toxicity and to block translocation of ENMs into secondary targeted organs [30, 3638]. Nevertheless, the molecular basis for intestinal barrier against ENMs toxicity is still largely unclear in animals. We hypothesized that deficit in intestinal development at certain aspects may alter the function of intestinal barrier and affect the toxicity and the translocation of GO in nematodes.

In C. elegans, intestine is a powerful experimental system for different aspects of biological studies, including the stress response [39]. The intestine comprises approximately one third of the total somatic mass in nematodes. In C. elegans, intestine is structurally organized by several cellular domains: apical domain including brush border and terminal web, basolateral domain including basement membrane, and apical junctions joining enterocytes to their partners or to adjacent ints into the intestinal structure [39]. The molecular basis for different cellular domains of intestine was summarized in the Table 1. In the apical domain, ACT-5 is required for microvilli development [40], IFB-2 is required for terminal web development [41], ERM-1 is required for connection between actin cytoskeleton and plasma membrane [42], EPS-8 is required for microvilli length control and actin-capping function [43], PAR-3, PAR-6, and PKC-3 are required for apical-basal polarity [44, 45], GEM-4 is required for brush border development [46], and MTM-6 and EAT-3/dynamin are required for endocytosis [47, 48]. In the basolateral domain, LET-413 is required to confine the apical domain [49], NFM-1 acts as a cytoskeletal linker [50], INX-7 is required for cell adhesion [51], and UNC-64/syntaxin, a plasma membrane receptor for intracellular vesicles, regulates vesicle secretion [52]. In the apical junctions, DLG-1 is required for organization of epithelium to a coherent tube [53], AJM-1 is required for junctional integrity [54], EGL-8 is required for vesicle secretion [55], LIN-7 functions as an organizational center for large macromolecular complexes [56], and HMP-1, HMP-2, and HMR-1 are required for tissue integrity of intestinal tube [53]. The aim of this study was to investigate the molecular basis for intestinal barrier against toxicity and translocation of GO using the C. elegans as a model animal. In this study, we first performed a genetic screen of genes required for the function of intestinal barrier against GO toxicity using the technique of intestine-specific RNA interference (RNAi). And then, we focused on the candidate gene of pkc-3 to examine the underlying molecular mechanism for its role in regulating the function of intestinal barrier against GO toxicity. Our results will strengthen our understanding the molecular basis for developmental machinery of intestinal barrier against environmental ENMs in animals.
Table 1

Information for genes required for the intestinal development in nematodes

Gene

Encoded protein

Function

Reference

act-5

Actin

Microvilli development

MacQueen et al., [73]

ifb-2

Intermediate filament protein

Terminal web development

Carberry et al., [41]

erm-1

Ezrin-radixin-moesin protein

Connection between actin cytoskeleton and plasma membrane

Gobel et al., [42]

eps-8

Cell signaling adaptor protein

Microvilli length control

Croce et al., [43]

par-3

PDZ-domain-containing protein

Apical-basal polarity

Nance and Priess, [44]

par-6

PDZ-domain-containing protein

Apical-basal polarity

Nance and Priess, [44]

pkc-3

Proetin kinase C

Apical-basal polarity

Wu et al., [45]

mtm-6

Myotubularin

Endocytosis

Xue et al., 2003

eat-3

Dynamin

Endocytosis

Labrousse et al., [48]

gem-4

Ca2+-dependent phosphatidylserine binding protein

Bush border development

Church and Lambie, [46]

let-413

Scribble

Confine apical domain

Legouis et al., [49]

nfm-1

Neurofibrularin

Cytoskeletal linker

Culetto and Sattelle, [50]

unc-64

Syntaxin

Vesicle secretion

Saifee et al., [52]

inx-3

Gap junction channel

Cell adhesion

Altun et al., [51]

dlg-1

MAGUK protein

Organization of epithelium to a coherent tube

Segbert et al., [53]

ajm-1

Apical junction molecule

Junctional integrity

Koppen et al., [54]

egl-8

Phospholipase Cβ

Vesicle secretion

Lackner et al., [55]

lin-7

PDZ-domain-containing protein

Organization of large macromolecular complexes

Feng et al., [56]

hmp-2

β-catenin

Tissue integrity of intestinal tube

Segbert et al., [53]

hmp-1

α-catenin

Tissue integrity of intestinal tube

Segbert et al., [53]

hmr-1

Cadherin

Tissue integrity of intestinal tube

Segbert et al., [53]

Results

Identification of intestinal-development related proteins required for the regulation of GO toxicity

VP303 strain is a tool for intestine-specific RNAi of certain genes [57]. Using the VP303 as an intestine-specific RNAi knockdown tool, we tried to identify the possible intestinal-development related genes required for the regulation of GO toxicity. Our previous study has indicated that acute exposure (from L4-larvae for 24 h) to GO at concentrations more than 10 mg/L could result in significant induction of intestinal reactive oxygen species (ROS) production and decrease in locomotion behavior in nematodes [28]. We here first selected the 10 mg/L as the working concentrations for GO exposure. L2-larvae were used to perform the RNAi treatment until the nematodes became L4-larvae. And then, the L4 larvae with RNAi knockdown of certain gene were exposed to GO for 24 h. We used the endpoint of intestinal ROS production to assess the potential toxic effect of GO exposure on the intestinal function. The data and the related information on the efficiency of RNAi of examined genes were shown in Additional file 1: Figure S1 and Table S1. Treatment with paraquat, a ROS generator, was used as a positive control of assay on intestinal ROS production (Additional file 1: Figure S2). Under normal conditions, intestine-specific RNAi knockdown of any examined gene required for the control of development of intestinal apical domain did not induce the significant intestinal ROS production (Fig. 1a). After acute exposure to GO, among the examined genes required for the control of development of intestinal apical domain, intestine-specific RNAi knockdown of ifb-2, eps-8, par-3, par-6, mtm-6, eat-3, or gem-4 did not significantly affect the induction of intestinal ROS production (Fig. 1a). However, after acute exposure to GO, intestine-specific RNAi knockdown of erm-1 or pkc-3 enhanced the induction of intestinal ROS production, and intestine-specific RNAi knockdown of act-5 suppressed the induction of intestinal ROS production (Fig. 1a). After acute exposure to GO, RNAi knockdown of ifb-2, eps-8, par-3, par-6, mtm-6, eat-3, erm-1, pkc-3, or gem-4 did not affect the survival of nematodes.
Figure 1
Fig. 1

Effects of intestine-specific RNAi knockdown of intestine-developmental related genes on GO toxicity. a Effects of intestine-specific RNAi knockdown of genes required for the control of development of intestinal apical domain on GO toxicity in inducing intestinal ROS production. b Effects of intestine-specific RNAi knockdown of genes required for the control of development of intestinal basolateral domain on GO toxicity in inducing intestinal ROS production. c Effects of intestine-specific RNAi knockdown of genes required for the control of development of intestinal apical junctions on GO toxicity in inducing intestinal ROS production. Acute exposure was performed from L4-larvae for 24 h. GO exposure concentration was 10 mg/L. Bars represent means ± SD. **P < 0.01 vs VP303 (if not specially indicated)

Similarly, under normal conditions, intestine-specific RNAi knockdown of any examined gene required for the control of development of intestinal basolateral domain did not induce the obvious intestinal ROS production (Fig. 1b). After acute exposure to GO, intestine-specific RNAi knockdown of let-413, nfm-1, unc-64, or inx-3 could not significantly influence the induction of intestinal ROS production (Fig. 1b). After acute exposure to GO, RNAi knockdown of let-413, nfm-1, unc-64, or inx-3 did not affect the survival of nematodes.

Under normal conditions, intestine-specific RNAi knockdown of any examined gene required for the control of development of intestinal apical junctions can not result in the induction of significant intestinal ROS production (Fig. 1c). After acute exposure to GO, among the examined genes required for the control of development of intestinal apical junctions, intestine-specific RNAi knockdown of dlg-1, ajm-1, egl-8, lin-7, hmp-1, or hmr-1 did not significantly influence the induction of intestinal ROS production (Fig. 1c). In contrast, after acute exposure to GO, intestine-specific RNAi knockdown of hmp-2 could cause the enhanced induction of intestinal ROS production (Fig. 1c). After acute exposure to GO, RNAi knockdown of dlg-1, ajm-1, egl-8, lin-7, hmp-1, hmp-2, or hmr-1 did not affect the survival of nematodes.

Effects of intestine-specific RNAi knockdown of act-5, erm-1, pkc-3, or hmp-2 on distribution and translocation of GO

We next examined the effects of intestine-specific RNAi knockdown of act-5, erm-1, pkc-3, or hmp-2 on distribution and translocation of GO. After GO/Rho B exposure, GO/Rho B could be severely accumulated in the body of nematodes, including the pharynx, intestine, spermatheca, and tail in VP303 nematodes (Fig. 2). Compared with the accumulation and translocation of GO/Rho B in VP303 nematodes, intestine-specific RNAi knockdown of erm-1, pkc-3, or hmp-2 significantly enhanced the accumulation of GO/Rho B in the body of nematodes; however, intestine-specific RNAi knockdown of act-5 significantly inhibited the GO/Rho B in the body of nematodes (Fig. 2). The UV/Vis spectral data on GO/Rho B, GO, and Rho B demonstrated the binding of Rho B to GO in the obtained GO/Rho B, since we could observe both the UV/Vis peak of GO and the UV/Vis peak of Rho B in the obtained GO/Rho B (Additional file 1: Figure S3).
Figure 2
Fig. 2

Effects of intestine-specific RNAi knockdown of intestine-developmental related genes on distribution and translocation of GO. The pharynx (*) and the intestine (**) were indicated by asterisks. Single arrowhead indicates the spermatheca, and double arrowhead indicates the tail. Acute exposure was performed from L4-larvae for 24 h. GO exposure concentration was 10 mg/L. Bars represent means ± SD. **P < 0.01 vs VP303

We next focused on the PKC-3 to investigate the underlying cellular and molecular mechanisms for its function in the regulation of toxicity and translocation of GO. We employed the molecular probe of Nile Red to analyze the possible effect of intestine-specific RNAi knockdown of pkc-3 on intestinal permeability. Under normal conditions, the Nile Red signals were mainly located in the intestinal lumen in VP303 nematodes, whereas intestine-specific RNAi knockdown of pkc-3 could cause the significant translocation of Nile Red into the intestinal cells in VP303 nematodes (Fig. 3a). Moreover, after GO exposure, we observed the more severe translocation and accumulation of Nile Red signals into the intestinal cells and even the body cavity in nematodes with intestine-specific RNAi knockdown of pkc-3 compared with that in VP303 (Fig. 3b). Meanwhile, under normal conditions, intestine-specific RNAi knockdown of pkc-3 did not obviously affect the fat storage, because we observed the similar Sudan Black staining results between nematodes with intestine-specific RNAi knockdown of pkc-3 and VP303 nematodes (Fig. 3b). Additionally, after GO exposure, intestine-specific RNAi knockdown of pkc-3 also did not obviously influence the fat storage (Fig. 3b). It has been reported that GO exposure could not alter the fat storage in wild-type nematodes [28]. Considering the fact that the Nile Red can also used to label the fat storage [58], our results suggest that PKC-3 is required for the regulation of intestinal permeability in nematodes.
Figure 3
Fig. 3

Effect of intestine-specific RNAi knockdown of pkc-3 on intestinal permeability in nematodes. a Effect of intestine-specific RNAi knockdown of pkc-3 on intestinal permeability as indicated by the signals of Nile Red. The right shows the comparison of fluorescence intensity of Nile Red signals in intestinal cells. Bars represent means ± SD. **P < 0.01 vs VP303. b Effect of intestine-specific RNAi knockdown of pkc-3 on fat storage labeled by Sudan Black. Acute exposure was performed from L4-larvae for 24 h. GO exposure concentration was 10 mg/L

Identification of downstream targets for intestinal PKC-3 in the regulation of toxicity and translocation of GO

In C. elegans, PAR-3, PAR-6, LGL-1, LIN-5, NLP-29, and SEC-8 may act as the potential targets for PKC-3 [5964]. We further examined whether these proteins can act the downstream targets for intestinal PKC-3 in the regulation of GO toxicity. After GO exposure, intestine-specific RNAi knockdown of pkc-3 did not significantly affect the transcriptional expressions of par-1, par-6, lin-5, and nlp-29 (Fig. 4a). In contrast, after GO exposure, intestine-specific RNAi knockdown of pkc-3 significantly increased the transcriptional expression of lgl-1, and decreased the transcriptional expression of sec-8 (Fig. 4a).
Figure 4
Fig. 4

Identification of downstream targets for intestinal PKC-3 in the regulation of GO toxicity and translocation. a Effects of intestine-specific RNAi knockdown of pkc-3 on expressions of par-1, par-5, lgl-1, lin-5, nlp-29, and sec-8 in GO exposed nematodes. b Effects of intestine-specific RNAi knockdown of lgl-1 or sec-8 on GO toxicity in inducing intestinal ROS production. c Effects of intestine-specific RNAi knockdown of sec-8 on distribution and translocation of GO/Rho B. The pharynx (*) and the intestine (**) were indicated by asterisks. Single arrowhead indicates the spermatheca, and double arrowhead indicates the tail. d Effects of intestine-specific RNAi knockdown of sec-8 on intestinal permeability as indicated by the signals of Nile Red. The right shows the comparison of fluorescence intensity of Nile Red signals in intestinal cells. e Genetic interaction between PKC-3 and SEC-8 in the regulation of toxicity and translocation of GO in inducing intestinal ROS production. f Genetic interaction between PKC-3 and SEC-8 in the regulation of toxicity and translocation of GO/Rho B. The pharynx (*) and the intestine (**) were indicated by asterisks. Single arrowhead indicates the spermatheca, and double arrowhead indicates the tail. Acute exposure was performed from L4-larvae for 24 h. GO or GO/Rho B exposure concentration was 10 mg/L. Bars represent means ± SD. **P < 0.01 vs VP303 (if not specially indicated)

We next focused on the LGL-1 and SEC-8 to determine the effects of intestine-specific RNAi knockdown of lgl-1 or sec-8 on toxicity and translocation of GO. After GO exposure, intestine-specific RNAi knockdown of sec-8 significantly enhanced the GO toxicity in inducing intestinal ROS production (Fig. 4b). However, intestine-specific RNAi knockdown of lgl-1 did not significantly affect the GO toxicity in inducing intestinal ROS production (Fig. 4b). After acute exposure to GO, RNAi knockdown of sec-8 did not affect the survival of nematodes. Moreover, we observed that intestine-specific RNAi knockdown of sec-8 could noticeably strengthen the accumulation of GO/Rho B in the body of nematodes (Fig. 4c).

Furthermore, under normal conditions, we found that intestine-specific RNAi knockdown of sec-8 caused the obvious translocation of Nile Red signals into the intestinal cells (Fig. 4d). Additionally, after GO exposure, intestine-specific RNAi knockdown of sec-8 induced the more severe translocation and accumulation of Nile Red signals into the intestinal cells and even the body cavity (Fig. 4d). Meanwhile, intestine-specific RNAi knockdown of sec-8 did not noticeably affect the fat storage under the normal conditions, and intestine-specific RNAi knockdown of sec-8 also did not obviously influence the fat storage after GO exposure (Additional file 1: Figure S4). Therefore, like the PKC-3, SEC-8 may also function in the maintenance of normal intestinal permeability.

To further confirm the potential role of SEC-8 as the downstream target of PKC-3, we investigated the genetic interaction between PKC-3 and SEC-8 in the regulation of toxicity and translocation of GO. After GO exposure, the GO toxicity in inducing intestinal ROS production in nematodes with intestine-specific RNAi knockdown of both pkc-3 and sec-8 was similar to that observed in nematodes with intestine-specific RNAi knockdown of pkc-3 or sec-8 (Fig. 4e). Additionally, the accumulation and translocation of GO in nematodes with intestine-specific RNAi knockdown of both pkc-3 and sec-8 was also similar to that observed in nematodes with intestine-specific RNAi knockdown of pkc-3 or sec-8 (Fig. 4f). Therefore, PKC-3 and SEC-8 may act in the same genetic pathway in the intestine to regulate the toxicity and the translocation of GO.

Identification of downstream targets for intestinal SEC-8 in the regulation of GO toxicity and translocation

In C. elegans, WTS-1 can act as a candidate target for SEC-8 [65]. After GO exposure, we found that intestine-specific RNAi knockdown of sec-8 significantly decreased the transcriptional expression of wts-1 (Fig. 5a). Intestine-specific RNAi knockdown of wts-1 further significantly enhanced the GO toxicity in inducing intestinal ROS production (Fig. 5b), and strengthened the accumulation of GO/Rho B in the body of nematodes (Fig. 5c). After acute exposure to GO, RNAi knockdown of wts-1 did not affect the survival of nematodes.
Figure 5
Fig. 5

Identification of downstream targets for intestinal SEC-8 in the regulation of GO toxicity and translocation. a Effects of intestine-specific RNAi knockdown of sec-8 on expressions of wts-1 in GO exposed nematodes. b Effects of intestine-specific RNAi knockdown of wts-1 on GO toxicity in inducing intestinal ROS production. c Effects of intestine-specific RNAi knockdown of wts-1 on distribution and translocation of GO/Rho B. The pharynx (*) and the intestine (**) were indicated by asterisks. Single arrowhead indicates the spermatheca, and double arrowhead indicates the tail. d Effects of intestine-specific RNAi knockdown of wts-1 on intestinal permeability as indicated by the signals of Nile Red. The right shows the comparison of fluorescence intensity of Nile Red signals in intestinal cells. e Genetic interaction between SEC-8 and WTS-1 in the regulation of toxicity and translocation of GO in inducing intestinal ROS production. f Genetic interaction between SEC-8 and WTS-1 in the regulation of toxicity and translocation of GO/Rho B. The pharynx (*) and the intestine (**) were indicated by asterisks. Single arrowhead indicates the spermatheca, and double arrowhead indicates the tail. Acute exposure was performed from L4-larvae for 24 h. GO or GO/Rho B exposure concentration was 10 mg/L. Bars represent means ± SD. **P < 0.01 vs VP303 (if not specially indicated)

Under normal conditions, intestine-specific RNAi knockdown of wts-1 induced the translocation of Nile Red signals into the intestinal cells (Fig. 5d). Moreover, after GO exposure, intestine-specific RNAi knockdown of wts-1 caused the more severe translocation and accumulation of Nile Red signals into the intestinal cells and even the body cavity (Fig. 5d). Meanwhile, intestine-specific RNAi knockdown of wts-1 did not noticeably affect the fat storage under the normal conditions or after GO exposure (Additional file 1: Figure S5). Therefore, WTS-1 may be also required for the maintenance of normal intestinal permeability. In C. elegans, wts-1 encodes a serine/threonine protein kinase orthologous to members of the NDR/LATS family of protein kinases.

After GO exposure, we observed that the GO toxicity in inducing intestinal ROS production in nematodes with intestine-specific RNAi knockdown of both sec-8 and wts-1 was similar to that observed in nematodes with intestine-specific RNAi knockdown of sec-8 or wts-1 (Fig. 5e). Similarly, the accumulation and translocation of GO in nematodes with intestine-specific RNAi knockdown of both sec-8 and wts-1 was similar to that observed in nematodes with intestine-specific RNAi knockdown of sec-8 or wts-1 (Fig. 5f). These results suggest that SEC-8 and WTS-1 may further act in the same genetic pathway in the intestine to regulate the toxicity and the translocation of GO.

Effects of intestine-specific RNAi knockdown of pkc-3 on molecular basis for oxidative stress

In C. elegans, mev-1 encodes a subunit of mitochondrial complex II [66], gas-1 encodes a subunit of mitochondrial complex I [67], isp-1 encodes a subunit of the mitochondrial complex III [68], and clk-1 encodes a ubiquinone biosynthesis protein COQ7 [69]. Under normal conditions, intestine-specific RNAi knockdown of pkc-3 did not significantly affect the transcriptional expressions of mev-1, gas-1, isp-1, and clk-1 (Fig. 6a). After GO exposure, although intestine-specific RNAi knockdown of pkc-3 still did not significantly influence the transcriptional expressions of mev-1, gas-1, and clk-1, intestine-specific RNAi knockdown of pkc-3 significantly increased the transcriptional expression of isp-1 (Fig. 6a). In C. elegans, the isp-1 mutant shows a decreased sensitivity to ROS [68].
Figure 6
Fig. 6

Effects of intestine-specific RNAi knockdown of pkc-3 on molecular basis for oxidative stress. a Effects of intestine-specific RNAi knockdown of pkc-3 on expressions of mev-1, gas-1, isp-1, and clk-1. b Effects of intestine-specific RNAi knockdown of pkc-3 on expressions of sod genes. c Effects of intestine-specific RNAi knockdown of isp-1 or sod-3 on GO toxicity in inducing intestinal ROS production. Acute exposure was performed from L4-larvae for 24 h. GO exposure concentration was 10 mg/L. Bars represent means ± SD. **P < 0.01 vs VP303 (if not specially indicated)

In C. elegans, sod genes encode superoxide dismutases (SODs), which are required for the animals defending the oxidative stress [70, 71]. Under normal conditions, intestine-specific RNAi knockdown of pkc-3 did not significantly affect the transcriptional expressions of all examined sod genes (Fig. 6b). After GO exposure, although intestine-specific RNAi knockdown of pkc-3 still did not significantly influence the transcriptional expressions of sod-1, sod-2, sod-4, and sod-5, intestine-specific RNAi knockdown of pkc-3 significantly increased the transcriptional expression of sod-3 (Fig. 6b). In C. elegans, sod-3 encodes a mitochondrial manganese SOD (Mn-SOD).

Moreover, we observed that intestine-specific RNAi knockdown of isp-1 significantly suppressed the GO toxicity in inducing intestinal ROS production, whereas intestine-specific RNAi knockdown of sod-3 enhanced the GO toxicity in inducing intestinal ROS production (Fig. 6c). After acute exposure to GO, RNAi knockdown of sod-3 did not affect the survival of nematodes. These results imply that intestinal PKC-3 may further regulate the GO toxicity by affecting the functions of ISP-1 and SOD-3.

Toxicity assessment of GO in nematodes with RNAi knockdown of wts-1, sod-3, or both after acute exposure

In nematodes, mutation of isp-1 induced a resistance to GO toxicity [34, 72]; whereas mutation of sod-3 induced a susceptibility to GO toxicity [72]. We next used intestinal ROS production as the toxicity assessment endpoint to investigate the effect of RNAi knockdown of wts-1, sod-3, or both on GO toxicity in nematodes acutely exposed to GO at different concentrations. After acute exposure to GO at the concentration of 10 mg/L, the more severe induction of intestinal ROS production was observed in nematodes with RNAi knockdown of wts-1 or sod-3 than that in VP 303 strain (Fig. 7a), and the more severe induction of intestinal ROS production was further detected in nematodes with RNAi knockdown of both wts-1 and sod-3 than that in nematodes with RNAi knockdown of wts-1 or sod-3 (Fig. 7a). After acute exposure to GO at the concentration of 1 mg/L, although we could not observe the significant induction of intestinal ROS production in VP303 strain, we detected the significant intestinal ROS production in nematodes RNAi knockdown of wts-1 or sod-3 than that in VP 303 strain (Fig. 7a). Additionally, we also observed the more severe induction of intestinal ROS production in nematodes with RNAi knockdown of both wts-1 and sod-3 than that in nematodes with RNAi knockdown of wts-1 or sod-3 after acute exposure to 1 mg/L of GO (Fig. 7a). After acute exposure to GO at the concentration of 0.1 mg/L, we could not observe the significant induction of intestinal ROS production in VP303 strain or nematodes RNAi knockdown of wts-1 or sod-3; however, we could still detect the significant induction of intestinal ROS production in nematodes with RNAi knockdown of both wts-1 and sod-3 (Fig. 7a).

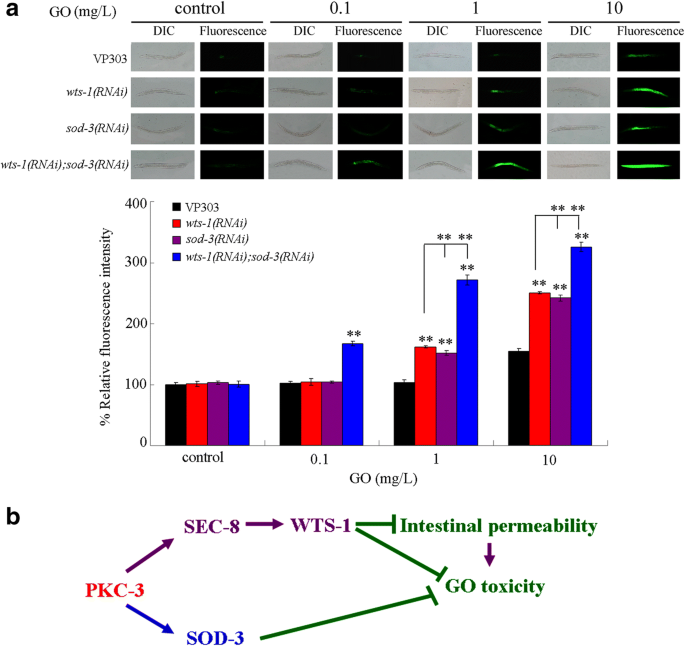

Figure 7
Fig. 7

Genetic interaction between WTS-1 and SOD-3 in the regulation of GO toxicity. a Toxicity assessment of GO at different concentrations in inducing intestinal ROS production in different strains. Acute exposure was performed from L4-larvae for 24 h. GO exposure concentration was 10 mg/L. Bars represent means ± SD. **P < 0.01 vs VP303 (if not specially indicated). b A diagram showing the molecular mechanism for PKC-3 in the regulation of GO toxicity

Genetic interaction between ACT-5 and PKC-3 in the regulation of the toxicity and the translocation of GO

To determine the underlying mechanism for the function of ACT-5 in regulating GO toxicity and translocation, we further investigated the genetic interaction between ACT-5 and PKC-3 in the regulation of the toxicity and the translocation of GO. After acute exposure to GO at the concentration of 10 mg/L, intestine-specific RNAi knockdown of pkc-3 significantly suppressed the resistance of nematodes with intestine-specific RNAi knockdown of act-5 to GO toxicity in inducing ROS production (Fig. 8a). Moreover, intestine-specific RNAi knockdown of pkc-3 could obviously disrupt the protection function for intestine-specific RNAi knockdown of act-5 against translocation and accumulation of GO in targeted organs (Fig. 8b). These results suggest that, in intestinal cells, ACT-5 may act upstream of PKC-3 to regulate the toxicity and the translocation of GO in nematodes.

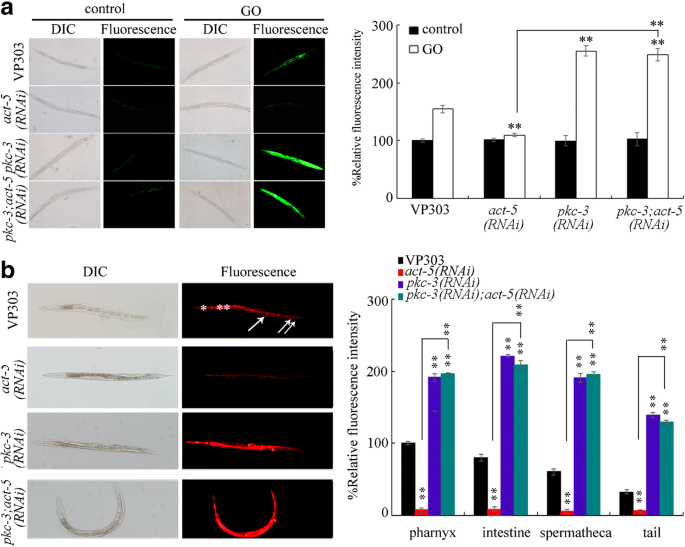

Figure 8
Fig. 8

Genetic interaction between ACT-5 and PKC-3 in the regulation of the toxicity in inducing ROS production (a) and the translocation (b) of GO in nematodes. Acute exposure was performed from L4-larvae for 24 h. GO or GO/Rho B exposure concentration was 10 mg/L. **P < 0.01 vs VP303 (if not specially indicated)

Discussion

In this study, with the aid of VP303 as an intestine-specific RNAi tool for certain genes, we identified the potential intestinal-development related genes required for the control of GO toxicity and translocation by performing a large screen. Based on the assays on the toxicity and translocation, we found that intestine-specific RNAi knockdown of erm-1, pkc-3, or hmp-2 enhanced the GO toxicity and the accumulation of GO in the body of nematodes (Figs. 1 and 2). Our previous study has demonstrated that prolonged exposure to GO from L1-larvae to young adults could significantly decrease the transcriptional expression of pkc-3 [28]. In contrast, prolonged exposure to GO did not significantly alter the transcriptional expression of erm-1 [28]. Although prolonged exposure to GO significantly decreased the transcriptional expression of par-6 [28], intestine-specific RNAi knockdown of par-6 did not obviously affect the GO toxicity in inducing intestinal ROS production (Fig. 1a). These results imply that the altered expression of some genes, such as pkc-3, may provide an important molecular basis for the involvement of developmental state of intestine in the regulation of GO toxicity and translocation.

Moreover, we found that intestine-specific RNAi knockdown of act-5 could inhibit the GO toxicity and suppress the accumulation and translocation of GO in the body of nematodes (Figs. 1 and 2). This observation suggests that different deficits in intestinal development may have different or even opposite effects on toxicity and translocation of GO. ACT-5 is required for the microvilli development in the apical domain of intestine [73], implying that certain alterations in intestinal microvilli development caused by act-5 mutation may be helpful for nematodes against the toxicity and the translocation of GO. In nematodes, it has been found that the ACT-5 can form coats around the membrane-bound vesicles containing environmental toxicants or pathogens to enhance their endocytosis into the targeted cells [74]. Therefore, the resistance of act-5 mutant to GO toxicity may be formed by suppressing this coating around the membrane-bound vesicles containing environmental ENMs and the endocytosis process in nematodes. In the intestinal cells of nematodes, ACT-5 may further regulate the toxicity and the translocation of GO by suppressing the function of PKC-3 in nematodes (Fig. 8).

Among the identified four genes (erm-1, pkc-3, hmp-2, and act-5), erm-1, pkc-3, and act-5 are required for the control of connection between actin cytoskeleton and plasma membrane, apical-basal polarity, or microvilli development in the apical domain of intestine [42, 44, 73], and hmp-2 is required for the control of tissue integrity of intestinal tube in the apical junctions [53]. However, among the examined four genes (let-413, nfm-1, unc-64, and inx-3) required for the control of different aspects of development of basolateral domain in the intestine, intestine-specific RNAi knockdown of any of these genes did not obviously affect the GO toxicity in inducing intestinal ROS production (Fig. 1b). Thus, at least the data obtained in this study do not support the potential involvement of developmental state of intestinal basolateral domain in the regulation of GO toxicity.

In C. elegans, pkc-3 encodes an atypical protein kinase C, which is required for the normal progression of embryogenesis and viability [45]. In this study, we further observed that intestine-specific RNAi knockdown of pkc-3 enhanced the intestinal permeability (Fig. 3). Moreover, after GO exposure, intestine-specific RNAi knockdown of pkc-3 resulted in the more severe enhancement of intestinal permeability compared with VP303 nematodes (Fig. 3). In C. elegans, PKC-3 is localized to the outer, apical surfaces of intestinal epithelia [75]. These results imply that the integrity of intestinal epithelia in apical domain of intestine is necessary for the maintenance of normal intestinal permeability in nematodes. Once the nematodes lack the normal function of PKC-3, the development in the apical surfaces of intestinal epithelia may be disrupted, and the normal intestinal permeability may be difficult to be further maintained.

In this study, we provide several lines of evidence to prove the role of SEC-8 as the downstream target of PKC-3 in regulating toxicity and translocation of GO. Firstly, intestine-specific RNAi of pkc-3 altered the transcriptional expression of sec-8 (Fig. 4a). Secondly, intestine-specific RNAi of sec-8 resulted in the enhanced GO toxicity in inducing intestinal ROS production and GO accumulation in the body of nematodes (Fig. 4b and c). Thirdly, under the normal conditions, the nematodes with intestine-specific RNAi of sec-8 showed the increased intestinal permeability, which was similar to that observed in nematodes with intestine-specific RNAi of pkc-3 (Fig. 4d). Moreover, genetic interaction assay indicated that PKC-3 and SEC-8 acted in the same genetic pathway in the intestine to regulate the toxicity and the translocation of GO (Fig. 4e and f). In C. elegans, sec-8 encodes a subunit of exocyst complex, and may be involved in the endocytosis [76]. Therefore, our results imply that PKC-3 may regulate the intestinal permeability by affecting the function of SEC-8 in the regulation of the process of endocytosis, which in turn influences the response of nematodes to GO exposure.

Moreover, we provide several lines of evidence to further demonstrate the role of WTS-1 as the downstream of SEC-8 in the regulation of toxicity and translocation of GO. Intestine-specific RNAi of sec-8 decreased the transcriptional expression of wts-1 (Fig. 5a). Additionally, intestine-specific RNAi of wts-1 could also induce the enhanced GO toxicity in inducing intestinal ROS production and the more severe GO accumulation in the body of nematodes compared with those in VP303 nematodes (Fig. 5b and c). Moreover, nematodes with intestine-specific RNAi of wts-1 also exhibited the increased intestinal permeability, as observed in nematodes with intestine-specific RNAi of pkc-3 or sec-8 (Fig. 5d). Furthermore, SEC-8 and WTS-1 can act in the same genetic pathway in the intestine to regulate the toxicity and the translocation of GO (Fig. 5e and f). Therefore, in this study, we raise the intestinal signaling cascade of PKC-3-SEC-8-WTS-1 required for the maintenance of intestinal permeability and the regulation of toxicity and translocation of GO. In C. elegans, wts-1 is required for the integrity of the apical intestinal membrane by affecting localization of newly synthesized apical actins, and SEC-8-mediated exocyst complex is required for the mislocalization of apical actin in wts-1 mutant [65]. In this raised intestinal signaling cascade of PKC-3-SEC-8-WTS-1, PKC-3 may regulate the intestinal permeability and GO toxicity and translocation by affecting the function of SEC-8-mediated exocyst complex in controlling the role of WTS-1 in the maintenance of integrity of the apical intestinal membrane (Fig. 7b).

In this study, we further identified the ISP-1 and SOD-3 as the downstream targets for PKC-3 in the regulation of GO toxicity (Fig. 6). Moreover, we found that RNAi knockdown of both wts-1 and sod-3 led to a more severe GO toxicity in inducing intestinal ROS production than RNAi knockdown of wts-1 and sod-3 (Fig. 7a), suggesting a synergistic effect between WTS-1 and SOD-3 was formed in the regulation of GO toxicity (Fig. 7b). This observation further implies that, in nematodes with RNAi knockdown of pkc-3, the decrease in sod-3 could further enhance the susceptibility to GO toxicity caused by the expressional suppression of wts-1.

It is normally considered that the environmentally relevant concentrations of ENMs were in the range of ng/L or μg/L [77, 78]. In this study, we even found the significant induction of intestinal ROS production in nematodes with RNAi knockdown of both wts-1 and sod-3 after acute exposure to GO (100 μg/L) (Fig. 7a). Therefore, our results imply that acute exposure to GO in the range of μg/L may potentially cause the toxic effects on environmental organisms under certain genetic background(s).

Conclusions

In conclusion, we investigated the developmental basis for intestinal barrier against environmental GO toxicity using C. elegans as a model animal. Based on the genetic screen of genes required for intestinal development at different aspects, we identified four developmental genes (erm-1, pkc-3, hmp-2 and act-5) necessary for the function of intestinal barrier against GO toxicity. Erm-1, pkc-3, and act-5 are required for the connection between actin cytoskeleton and plasma membrane, apical-basal polarity, or microvilli development in apical domain of intestine, and hmp-2 is required for the tissue integrity of intestinal tube in the apical junctions. With the focus on the PKC-3, an atypical protein kinase C, we raised a signaling cascade of PKC-3-SEC-8-WTS-1 that is required for the regulation of both intestinal permeability and GO toxicity. ISP-1 and SOD-3, two proteins required for the control of oxidative stress, were further identified as downstream targets for PKC-3, and a synergistic effect between WTS-1 and SOD-3 was formed in the regulation of GO toxicity. Using the strain with RNAi knockdown of both wts-1 and sod-3 as a tool, we could detect the toxicity of GO in the range of μg/L after acute exposure. Our results will aid our understanding molecular mechanisms for the organization of intestinal barrier to defense the translocation and the toxicity of environmental ENMs in animals.

Methods

Preparation and characterization of GO

GO was prepared from natural graphite as described previously [79]. GO was finally obtained by ultrasonication of as-made graphite oxide in water for 1 h. GO was characterized by atomic force microscopy (AFM, SPM-9600, Shimadzu, Japan), Raman spectroscopy (Renishaw Invia Plus laser Raman spectrometer, Renishaw, UK), and X-ray photoelectron spectrum (XPS) (AXIS Ultra instrument, Kratos, UK) [34]. Based on the AFM assay, GO thickness was approximately 1.0 nm in topographic height, and sizes of most of the GO in K-medium after sonication (40 kHz, 100 W, 30 min) were mainly in the range of 40–60 nm [34]. Based on Raman spectroscopy measurement using a 632 nm wavelength excitation, a G band at 1573.7 cm− 1 and a D band at 1350.2 cm− 1 were detected in GO sheet [34]. Based on XPS assay, different oxygen functional groups exist in the GO structures (e.g. carbonyl, epoxy, hydroxyl groups), suggesting the considerable degree of oxidation of GO sheets [34].

C. elegans strains and culture

Nematode strains used in this study were wild-type N2 and transgenic strain of VP303/kbIs7[nhx-2p::rde-1], which were from Caenorhabditis Genetics Center. Nematodes were maintained on normal nematode growth medium (NGM) plates seeded with Escherichia coli OP50 as a food source at 20 °C [18]. Gravid hermaphrodite nematodes were collected and lysed with a bleaching mixture (0.45 M NaOH, 2% HOCl) in order to separate the eggs from the worms. The collected eggs were used to prepare the age synchronous L2-larvae populations.

Exposure and toxicity assessment

The stock solution of GO (1 mg/mL) was prepared in K medium by sonication for 30 min (40 kHz, 100 W). In this study, 0.1, 1, 10 mg/L were selected as the working concentrations for GO exposure. GO at the working concentrations were prepared by diluting the stock solution with K medium. Acute exposure (from L4-larvae for 24 h) to GO was performed in the liquid at 20 °C in the presence of food (OP50).

The endpoint of intestinal ROS production was used to reflect the functional state of the primary targeted organ of intestine [80]. ROS production was analyzed as described previously [81, 82]. After GO exposure, the examined nematodes were transferred to 1 μM 5′,6′-chloromethyl-2′,7′-dichlorodihydro-fluorescein diacetate (CM-H2DCFDA; Molecular Probes) solution to incubate for 3 h in the dark. After labeling, the nematodes were mounted on a 2% agar pad and examined at 488 nm of excitation wavelength and at 510 nm of emission filter under a laser scanning confocal microscope (Leica, TCS SP2, Bensheim, Germany). Relative fluorescence intensity of ROS signals in the intestine was semi-quantified, and expressed as the relative fluorescence units (RFU). Fifty nematodes were examined per treatment.

Distribution and translocation of GO in the body of nematodes

To investigate the translocation and distribution of GO in nematodes, Rho B was loaded on GO by mixing Rho B solution (1 mg/mL, 0.3 mL) with an aqueous suspension of GO (0.1 mg/mL, 5 mL) as previously described [72]. Unbound Rho B was removed by dialysis against distilled water over 72 h. The examined nematodes were incubated with GO/Rho B from L4-larvae for 24 h. After washing with M9 buffer for three times, the nematodes were observed under a laser scanning confocal microscope (Leica, TCS SP2, Bensheim, Germany). The UV/Vis spectral measurements were taken on a Perkin Elmer Lambda 25 spectrophotometer to examine the binding property of Rho B with GO.

Reverse-transcription and quantitative real-time polymerase chain reaction (qRT-PCR) assay

Total RNAs of nematodes were extracted using RNeasy Mini kit (Qiagen). The prepared total RNAs were reverse transcribed using PrimeScript ™ RT reagent kit (Takara, Otsu, Shiga, Japan). After cDNA synthesis, real-time PCR was performed using SYBR Premix Ex Taq™ (Takara) for the aim of amplification of PCR products. Real-time PCR was run at the optimized annealing temperature of 58 °C. Relative quantification of targeted genes in comparison to a reference tba-1 gene encoding a tubulin protein was determined. The final results were expressed as relative expression ratio between targeted gene and reference gene. All reactions were performed in triplicate. The related primer information for qRT-PCR is shown in Additional file 1: Table S2.

RNAi assay

RNAi was performed by feeding nematodes with E. coli strain HT115 (DE3) expressing double-stranded RNA that is homologous to a target gene as described [83]. E. coli HT115 (DE3) grown in LB broth containing ampicillin (100 μg/mL) at 37 °C overnight was plated onto NGM containing ampicillin (100 μg/mL) and isopropyl 1-thio-β-D-galactopyranoside (IPTG, 5 mM). L2-larvae were placed on RNAi plates for 2 days at 20 °C until the nematodes became L4-larvae. The RNAi efficiency was confirmed by qRT-PCR (Additional file 1: Figure S1). The obtained L4-larvae with RNAi knockdown of certain gene were used for the further exposure to GO.

Nile red staining

Nile Red staining method was performed as described previously [35]. Nile Red (Molecular Probes, Eugene, OR) was dissolved in acetone to prepare a stock solution (0.5 mg/mL), and stored at 4 °C. The stock solution was freshly diluted in 1 x PBS buffer to obtain the working solution (1 mg/mL) for the Nile Red staining. Fifty nematodes were examined per treatment.

Sudan black staining

Sudan Black staining method was performed as described previously [58]. The examined nematodes were washed in M9 buffer and fixed with 1% paraformaldehyde. The nematodes were subjected to 3 freeze–thaw cycles and dehydrated through an ethanol series. The nematodes were then stained overnight in a 50% saturated solution of Sudan Black in 70% ethanol, rehydrated, and photographed. Fifty nematodes were examined per treatment.

Statistical analysis

Data in this article were expressed as means ± standard deviation (SD). Statistical analysis was performed using SPSS 12.0 software (SPSS Inc., Chicago, USA). Differences between groups were determined using analysis of variance (ANOVA), and probability level of 0.01 was considered statistically significant. Graphs were generated using Microsoft Excel software (Microsoft Corp., Redmond, WA).

Declarations

Funding

This work was supported by the grant from Bilateral Projects 2016 China-Bulgaria (no. 15-4).

Availability of data and materials

All the data and materials are available.

Authors’ contributions

DW conceived and designed the experiments. MR, LZ, XD, NK, and QR performed the experiments, and analyzed the data. DW wrote the paper. All authors read and approved the final manuscript.

Ethics approval and consent to participate

Not applicable.

Consent for publication

All authors agree for the publication.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
Key Laboratory of Environmental Medicine Engineering in Ministry of Education, Medical School, Southeast University, Nanjing, China
(2)
College of Life Sciences, Nanjing Agricultural University, Nanjing, China
(3)
Institute of Biophysics and Biomedical Engineering, Bulgarian Academy of Science, Sofia, Bulgaria

References

  1. Geim AK. Graphene: status and prospects. Science. 2009;2009(324):1530–4.View ArticleGoogle Scholar
  2. Geim AK, Novoselov KS. The rise of graphene. Nat Mater. 2007;6:183–91.View ArticlePubMedGoogle Scholar
  3. Bitounis D, Ali-Boucetta H, Hong BH, Min D, Kostarelos K. Prospects and challenges of graphene in biomedical applications. Adv Mater. 2013;25:2258–68.View ArticlePubMedGoogle Scholar
  4. Zhu X, Shan Y, Xiong S, Shen J, Wu X. Brianyoungite/graphene oxide coordination composites for high-performance Cu2+ adsorption and tunable deep-red photoluminescence. ACS Appl Mater Interfaces. 2016;8:15848–54.View ArticlePubMedGoogle Scholar
  5. Cheng C, Wang D. Hydrogel-assisted transfer of graphene oxides into nonpolar organic media for oil decontamination. Angew Chem Int Ed. 2016;55:6853–37.View ArticleGoogle Scholar
  6. Chang Y, Yang S, Liu J, Dong E, Wang Y, Cao A, Liu Y, Wang H. In vitro toxicity evaluation of graphene oxide on A549 cells. Toxicol Lett. 2011;200:201–10.View ArticlePubMedGoogle Scholar
  7. Li Y-P, Wu Q-L, Zhao Y-L, Bai Y-F, Chen P-S, Xia T, Wang D-Y. Response of microRNAs to in vitro treatment with graphene oxide. ACS Nano. 2014;8:2100–10.View ArticlePubMedGoogle Scholar
  8. Liao K, Lin Y, Macosko CW, Haynes CL. Cytotoxicity of graphene oxide and graphene in human erythrocytes and skin fibroblasts. ACS Appl Mater Interfaces. 2011;3:2607–15.View ArticlePubMedGoogle Scholar
  9. Liu Y, Wang X, Wang J, Nie Y, Du H, Dai H, Wang J, Wang M, Chen S, Hei TK, Deng Z, Wu L, Xu A. Graphene oxide attenuates the cytotoxicity and mutagenicity of PCB 52 via activation of genuine autophagy. Environ Sci Technol. 2016;50:3154–64.View ArticlePubMedGoogle Scholar
  10. Qu G, Zhang S, Wang L, Wang X, Sun B, Yin N, Gao X, Xia T, Chen J, Jiang G. Graphen oxide induces toll-like receptor 4 (TLR4)-dependent necrosis in macrophages. ACS Nano. 2013;7:5732–45.View ArticlePubMedGoogle Scholar
  11. Li B, Yang J, Huang Q, Zhang Y, Peng C, Zhang Y, He Y, Shi J, Li W, Hu J, Fan C. Biodistribution and pulmonary toxicity of intratracheally instilled graphene oxide in mice. NPG Asia Mater. 2013;5:e44.View ArticleGoogle Scholar
  12. Liang S, Xu S, Zhang D, He J, Chu M. Reproductive toxicity of nanosclae graphene oxide in male mice. Biomaterials. 2015;9:92–105.Google Scholar
  13. Yang K, Li Y, Tan X, Peng R, Liu Z. Behavior and toxicity of graphene and its functionalized derivatives in biological systems. Small. 2013;9:1492–503.View ArticlePubMedGoogle Scholar
  14. Leung MC, Williams PL, Benedetto A, Au C, Helmcke KJ, Aschner M, Meyer JN. Caenorhabditis elegans: an emerging model in biomedical and environmental toxicology. Toxicol Sci. 2008;106:5–28.View ArticlePubMedPubMed CentralGoogle Scholar
  15. Yu X-M, Guan X-M, Wu Q-L, Zhao Y-L, Wang D-Y. Vitamin E ameliorates the neurodegeneration related phenotypes caused by neurotoxicity of Al2O3-nanoparticles in C. elegans. Toxicol Res. 2015;4:1269–81.View ArticleGoogle Scholar
  16. Wu Q-L, Zhi L-T, Qu Y-Y, Wang D-Y. Quantum dots increased fat storage in intestine of Caenorhabditis elegans by influencing molecular basis for fatty acid metabolism. Nanomedicine. 2016;12:1175–84.View ArticlePubMedGoogle Scholar
  17. Zhao L, Wan H-X, Liu Q-Z, Wang D-Y. Multi-walled carbon nanotubes-induced alterations in microRNA let-7 and its targets activate a protection mechanism by conferring a developmental timing control. Part Fibre Toxicol. 2017;14:27.View ArticlePubMedPubMed CentralGoogle Scholar
  18. Brenner S. The genetics of Caenorhabditis elegans. Genetics. 1974;77:71–94.PubMedPubMed CentralGoogle Scholar
  19. Zhao Y-L, Wu Q-L, Li Y-P, Wang D-Y. Translocation, transfer, and in vivo safety evaluation of engineered nanomaterials in the non-mammalian alternative toxicity assay model of nematode Caenorhabditis elegans. RSC Adv. 2013;3:5741–57.View ArticleGoogle Scholar
  20. Wang D-Y. Biological effects, translocation, and metabolism of quantum dots in nematode Caenorhabditis elegans. Toxicol Res. 2016;5:1003–11.View ArticleGoogle Scholar
  21. Mohan N, Chen C, Hsieh H, Wu Y, Chang H. In vivo imaging and toxicity assessments of fluorescent nanodiamonds in Caenorhabditis elegans. Nano Lett. 2010;10:3692–9.View ArticlePubMedGoogle Scholar
  22. Zhang W, Wang C, Li Z, Lu Z, Li Y, Yin J, Zhou Y, Gao X, Fang Y, Nie G, Zhao Y. Unraveling stress-induced toxicity properties of graphene oxide and the underlying mechanism. Adv Mater. 2012;24:5391–7.View ArticlePubMedGoogle Scholar
  23. Zanni Z, De Bellis G, Bracciale MP, Broggi A, Santarelli ML, Sarto MS, Palleschi C, Uccelletti D. Graphite nanoplatelets and Caenorhabditis elegans: insights from an in vivo model. Nano Lett. 2012;12:2740–4.View ArticlePubMedGoogle Scholar
  24. Chen P, Hsiao K, Chou C. Molecular characterization of toxicity mechanism of single-walled carbon nanotubes. Biomaterials. 2013;34:5661–9.View ArticlePubMedGoogle Scholar
  25. Yang J-N, Zhao Y-L, Wang Y-W, Wang H-F, Wang D-Y. Toxicity evaluation and translocation of carboxyl functionalized graphene in Caenorhabditis elegans. Toxicol Res. 2015;4:1498–510.View ArticleGoogle Scholar
  26. Shakoor S, Sun L-M, Wang D-Y. Multi-walled carbon nanotubes enhanced fungal colonization and suppressed innate immune response to fungal infection in nematodes. Toxicol Res. 2016;5:492–9.View ArticleGoogle Scholar
  27. Zhao Y-L, Yang J-N, Wang D-Y. A microRNA-mediated insulin signaling pathway regulates the toxicity of multi-walled carbon nanotubes in nematode Caenorhabditis elegans. Sci Rep. 2016;6:23234.View ArticlePubMedPubMed CentralGoogle Scholar
  28. Wu Q-L, Yin L, Li X, Tang M, Zhang T, Wang D-Y. Contributions of altered permeability of intestinal barrier and defecation behavior to toxicity formation from graphene oxide in nematode Caenorhabditis elegans. Nanoscale. 2013;5:9934–43.View ArticlePubMedGoogle Scholar
  29. Qu M, Li Y-H, Wu Q-L, Xia Y-K, Wang D-Y. Neuronal ERK signaling in response to graphene oxide in nematode Caenorhabditis elegans. Nanotoxicology. 2017;11:520–33.View ArticlePubMedGoogle Scholar
  30. Xiao G-S, Zhi L-T, Ding X-C, Rui Q, Wang D-Y. Value of mir-247 in warning graphene oxide toxicity in nematode Caenorhabditis elegans. RSC Adv. 2017;7:52694–701.View ArticleGoogle Scholar
  31. Zhao Y-L, Jia R-H, Qiao Y, Wang D-Y. Glycyrrhizic acid, active component from Glycyrrhizae radix, prevents toxicity of graphene oxide by influencing functions of microRNAs in nematode Caenorhabditis elegans. Nanomedicine. 2016;12:735–44.View ArticlePubMedGoogle Scholar
  32. Chatterjee N, Kim Y, Yang J, Roca CP, Joo SW, Choi J. A systems toxicology approach reveals the Wnt-MAPK crosstalk pathway mediated reproductive failure in Caenorhabditis elegans exposed to graphene oxide (GO) but not to reduced graphene oxide (rGO). Nanotoxicology. 2017;11:76–86.View ArticlePubMedGoogle Scholar
  33. Chen H, Li H-R, Wang D-Y. Graphene oxide dysregulates Neuroligin/NLG-1-mediated molecular signaling in interneurons in Caenorhabditis elegans. Sci Rep. 2017;7:41655.View ArticlePubMedPubMed CentralGoogle Scholar
  34. Wu Q-L, Zhou X-F, Han X-X, Zhuo Y-Z, Zhu S-T, Zhao Y-L, Wang D-Y. Genome-wide identification and functional analysis of long noncoding RNAs involved in the response to graphene oxide. Biomaterials. 2016;102:277–91.View ArticlePubMedGoogle Scholar
  35. Zhi L-T, Ren M-X, Qu M, Zhang H-Y, Wang D-Y. Wnt ligands differentially regulate toxicity and translocation of graphene oxide through different mechanisms in Caenorhabditis elegans. Sci Rep. 2016;6:39261.View ArticlePubMedPubMed CentralGoogle Scholar
  36. Liu Z-F, Zhou X-F, Wu Q-L, Zhao Y-L, Wang D-Y. Crucial role of intestinal barrier in the formation of transgenerational toxicity in quantum dots exposed nematodes Caenorhabditis elegans. RSC Adv. 2015;5:94257–66.View ArticleGoogle Scholar
  37. Zhao Y-L, Yang R-L, Rui Q, Wang D-Y. Intestinal insulin signaling encodes two different molecular mechanisms for the shortened longevity induced by graphene oxide in Caenorhabditis elegans. Sci Rep. 2016;6:24024.View ArticlePubMedPubMed CentralGoogle Scholar
  38. Zhi L-T, Fu W, Wang X, Wang D-Y. ACS-22, a protein homologous to mammalian fatty acid transport protein 4, is essential for the control of toxicity and translocation of multi-walled carbon nanotubes in Caenorhabditis elegans. RSC Adv. 2016;6:4151–9.View ArticleGoogle Scholar
  39. McGhee JD. The C. elegans intestine. WormBook. 2007; https://doi.org/10.1895/wormbook.1.133.1.
  40. Miyadera H, Amino H, Hiraishi A, Taka H, Murayama K, Miyoshi H, Sakamoto K, Ishii N, Hekimi S, Kita K. Altered quinone biosynthesis in the long-lived clk-1 mutants of Caenorhabditis elegans. J Biol Chem. 2001;276:7713–6.View ArticlePubMedGoogle Scholar
  41. Carberry K, Wiesenfahrt T, Geisler F, Stocker S, Gerhardus H, Uberbach D, Davis W, Jorgensen E, Leube RE, Bossinger O. The novel intestinal filament organizer IFO-1 contributes to epithelial integrity in concert with ERM-1 and DLG-1. Development. 2012;139:1851–62.View ArticlePubMedPubMed CentralGoogle Scholar
  42. Gobel V, Barrett PL, Hall DH, Fleming JT. Lumen morphogenesis in C. elegans requires the membrane-cytoskeleton linker erm-1. Dev Cell. 2004;6:865–73.View ArticlePubMedGoogle Scholar
  43. Croce A, Cassata G, Disanza A, Gagliani MC, Tacchetti C, Malabarba MG, Carlier MF, Scita G, Baumeister R, Di Fiore PP. A novel actin barbed-end-capping activity in EPS-8 regulates apical morphogenesis in intestinal cells of Caenorhabditis elegans. Nat Cell Biol. 2004;6:1173–9.View ArticlePubMedGoogle Scholar
  44. Nance J, Priess JR. Cell polarity and gastrulation in C . elegans. Development. 2002;129:387–97.PubMedGoogle Scholar
  45. Wu SL, Staudinger J, Olson EN, Rubin CS. Structure, expression, and properties of an atypical protein kinase C (PKC3) from Caenorhabditis elegans. PKC3 is required for the normal progression of embryogenesis and viability of the organism. J Biol Chem. 1998;273:1130–43.View ArticlePubMedGoogle Scholar
  46. Church DL, Lambie EJ. The promotion of gonadal cell divisions by the Caenorhabditis elegans TRPM cation channel GON-2 is antagonized by GEM-4 copine. Genetics. 2003;165:563–74.PubMedPubMed CentralGoogle Scholar
  47. Xue Y, Fares H, Grant B, Li Z, Rose AM, Clark SG, Skolnik E. Genetic analysis of the myotubularin family of phosphatases in Caenorhabditis elegans. J Biol Chem. 2003;278:34380–6.View ArticlePubMedGoogle Scholar
  48. Labrousse AM, Shurland DL, van der Bliek AM. Contribution of the GTPase domain to the subcellular localization of dynamin in the nematode Caenorhabditis elegans. Mol Biol Cell. 1998;9:3227–39.View ArticlePubMedPubMed CentralGoogle Scholar
  49. Legouis R, Gansmuller A, Sookhareea S, Bosher JM, Baillie DL, Labouesse M. LET-413 is a basolateral protein required for the assembly of adherens junctions in Caenorhabditis elegans. Nat Cell Biol. 2000;2:415–22.View ArticlePubMedGoogle Scholar
  50. Culetto E, Sattelle DB. A role for Caenorhabditis elegans in understanding the function and interactions of human disease genes. Hum Mol Genet. 2000;9:869–977.View ArticlePubMedGoogle Scholar
  51. Altun ZF, Chen B, Wang ZW, Hall DH. High resolution map of Caenorhabditis elegans gap junction proteins. Dev Dyn. 2009;238:1936–50.View ArticlePubMedPubMed CentralGoogle Scholar
  52. Saifee O, Wei LP, Nonet ML. The Caenorhabditis elegans unc-64 locus encodes a syntaxin that interacts genetically with synaptobrevin. Mol Biol Cell. 1998;9:1235–52.View ArticlePubMedPubMed CentralGoogle Scholar
  53. Segbert C, Johnson K, Theres C, van Furden D, Bossinger O. Molecular and functional analysis of apical junction formation in the gut epithelium of Caenorhabditis elegans. Dev Biol. 2004;266:17–26.View ArticlePubMedGoogle Scholar
  54. Koppen M, Simske JS, Sims PA, Firestein BL, Hall DH, Radice AD, Rongo C, Hardin JD. Cooperative regulation of AJM-1 controls junctional integrity in Caenorhabditis elegans epithelia. Nat Cell Biol. 2001;3:983–91.View ArticlePubMedGoogle Scholar
  55. Lackner MR, Nurrish SJ, Kaplan JM. Facilitation of synaptic transmission by EGL-30 Gqα and EGL-8 PLCβ: DAG binding to UNC-13 is required to stimulate acetylcholine release. Neuron. 1999;24:335–46.View ArticlePubMedGoogle Scholar
  56. Feng W, Long JF, Fan JS, Suetake T, Zhang M. The tetrameric L27 domain complex as an organization platform for supramolecular assemblies. Nat Struct Mol Biol. 2004;11:475–80.View ArticlePubMedGoogle Scholar
  57. Espelt MV, Estevez AY, Yin X, Strange K. Oscillatory Ca2+ signaling in the isolated Caenorhabditis elegans intestine: role of the inositol-1,4,5-trisphosphate receptor and phospholipases C β and γ. J Gen Physiol. 2005;126:379–92.View ArticlePubMedPubMed CentralGoogle Scholar
  58. Wu Q-L, Rui Q, He K-W, Shen L-L, Wang D-Y. UNC-64 and RIC-4, the plasma membrane associated SNAREs syntaxin and SNAP-25, regulate fat storage in nematode Caenorhabditis elegans. Neurosci Bull. 2010;26:104–16.View ArticlePubMedPubMed CentralGoogle Scholar
  59. Tabuse Y, Izumi Y, Piano F, Kemphues KJ, Miwa J, Ohno S. Atypical protein kinase C cooperates with PAR-3 to establish embryonic polarity in Caenorhabditis elegans. Development. 1998;125:3607–14.PubMedGoogle Scholar
  60. Lee I, Lehner B, Crombie C, Wong W, Fraser AG, Marcotte EM. A single gene network accurately predicts phenotypic effects of gene perturbation in Caenorhabditis elegans. Nat Genet. 2008;40:181–8.View ArticlePubMedGoogle Scholar
  61. Ziegler K, Kurz CL, Cypowyj S, Couillault C, Pophillat M, Pujol N, Ewbank JJ. Antifungal innate immunity in C. elegans: PKCdelta links G protein signaling and a conserved p38 MAPK cascade. Cell Host Microbe. 2009;5:341–52.View ArticlePubMedGoogle Scholar
  62. Beatty A, Morton D, Kemphues K. The C. elegans homolog of Drosophila lethal giant larvae functions redundantly with PAR-2 to maintain polarity in the early embryo. Development. 2010;137:3995–4004.View ArticlePubMedPubMed CentralGoogle Scholar
  63. Galli M, Munoz J, Portegijs V, Boxem M, Grill SW, Heck AJ, van den Heuvel S. aPKC phosphorylates NuMA-related LIN-5 to position the mitotic spindle during asymmetric division. Nat Cell Biol. 2011;13:1132–8.View ArticlePubMedGoogle Scholar
  64. Armenti ST, Chan E, Nance J. Polarized exocyst-mediated vesicle fusion directs intracellular lumenogenesis within the C. elegans excretory cell. Dev Biol. 2014;394:110–21.View ArticlePubMedPubMed CentralGoogle Scholar
  65. Kang J, Shin D, Yu JR, Lee J. Lats kinase is involved in the intestinal apical membrane integrity in the nematode Caenorhabditis elegans. Development. 2009;136:2705–015.View ArticlePubMedGoogle Scholar
  66. Ishii N, Fujii M, Hartman PS, Tsuda M, Yasuda K, Senoo-Matsuda N, Yanase S, Ayusawa D, Suzuki K. A mutation in succinate dehydrogenase cytochrome b causes oxidative stress and ageing in nematodes. Nature. 1998;394:694–7.View ArticlePubMedGoogle Scholar
  67. Kayser EB, Morgan PG, Hoppel CL, Sedensky MM. Mitochondrial expression and function of GAS-1 in Caenorhabditis elegans. J Biol Chem. 2001;276:20551–8.View ArticlePubMedGoogle Scholar
  68. Feng J, Bussiere F, Hekimi S. Mitochondrial electron transport is a key determinant of life span in Caenorhabditis elegans. Dev Cell. 2001;1:633–44.View ArticlePubMedGoogle Scholar
  69. Miyadera H, Amino H, Hiraishi A, Taka H, Murayama K, Miyoshi H, Sakamoto K, Ishii N, Hekimi S, Kita K. Altered quinone biosynthesis in the long-lived clk-1 mutant of Caenorhabditis elegans. J Biol Chem. 2001;276:7713–6.View ArticlePubMedGoogle Scholar
  70. Yanase S, Onodera A, Tedesco P, Johnson TE, Ishii N. SOD-1 deletions in Caenorhabditis elegans alter the localization of intracellular reactive oxygen species and show molecular compensation. J Gerontol A Biol Sci Med Sci. 2009;64:530–9.View ArticlePubMedGoogle Scholar
  71. Yanase S, Yasuda K, Ishii N. Adaptive responses to oxidative damage in three mutants of Caenorhabditis elegans (age-1, mev-1 and daf-16) that affect life span. Mech Ageing Dev. 2002;123:1579–87.View ArticlePubMedGoogle Scholar
  72. Zhao Y-L, Zhi L-T, Wu Q-L, Yu Y-L, Sun Q-Q, Wang D-Y. p38 MAPK-SKN-1/Nrf signaling cascade is required for intestinal barrier against graphene oxide toxicity in Caenorhabditis elegans. Nanotoxicology. 2016;10:1469–79.View ArticlePubMedGoogle Scholar
  73. MacQueen AJ, Baggett JJ, Perumov N, Bauer RA, Januszewski T, Schriefer L, Waddle JA. ACT-5 is an essential Caenorhabditis elegans actin required for intestinal microvilli formation. Mol Biol Cell. 2005;16:3247–59.View ArticlePubMedPubMed CentralGoogle Scholar
  74. Szumowski SC, Estes KA, Popovlch JJ, Botts MR, Sek G, Troemel ER. Small GTPases promote actin coat formation on microsporidian pathogens traversing the apical membrane of Caenorhabditis elegans intestinal cells. Cell Microbiol. 2016;18:30–45.View ArticlePubMedGoogle Scholar
  75. Izumi Y, Hirose T, Tamai Y, Hirai S, Nagashima Y, Fujimoto T, Tabuse Y, Kemphues KJ, Ohno S. An atypical PKC directly associates and colocalizes at the epithelial tight junction with ASIP, a mammalian homologue of Caenorhabditis elegans polarity protein PAR-3. J Cell Biol. 1998;143:95–106.View ArticlePubMedPubMed CentralGoogle Scholar
  76. Fares H, Greenwald I. Genetic analysis of endocytosis in Caenorhabditis elegans: coelomocyte uptake defective mutants. Genetics. 2001;159:133–45.PubMedPubMed CentralGoogle Scholar
  77. Gottschalk F, Sonderer T, Scholz RW, Nowack B. Modeled environmental concentrations of engineered nanomaterials (TiO2, ZnO, ag, CNT, fullerenes) for different regions. Environ Sci Technol. 2009;43:9216–22.View ArticlePubMedGoogle Scholar
  78. Mueller N, Nowack B. Exposure modeling of engineered nanoparticles in the environment. Environ Sci Technol. 2008;42:4447–53.View ArticlePubMedGoogle Scholar
  79. Kovtyukhova NI, Olivier PJ, Martin BR, Mallouk TE, Chizhik SA, Buzaneva EV, Gorchinskiy AD. Layer-by-layer assembly of ultrathin composite films from micron-sized graphite oxide sheets and polycations. Chem Mater. 1999;11:771–8.View ArticleGoogle Scholar
  80. Ren M-X, Zhao L, Lv X, Wang D-Y. Antimicrobial proteins in the response to graphene oxide in Caenorhabditis elegans. Nanotoxicology. 2017;11:578–90.View ArticlePubMedGoogle Scholar
  81. Ding X-C, Wang J, Rui Q, Wang D-Y. Long-term exposure to thiolated graphene oxide in the range of μg/L induces toxicity in nematode Caenorhabditis elegans. Sci Total Environ. 2018;616-617:29–37.View ArticlePubMedGoogle Scholar
  82. Zhi L-T, Qu M, Ren M-X, Zhao L, Li Y-H, Wang D-Y. Graphene oxide induces canonical Wnt/β-catenin signaling-dependent toxicity in Caenorhabditis elegans. Carbon. 2017;113:122–31.View ArticleGoogle Scholar
  83. Kamath RK, Martinez-Campos M, Zipperlen P, Fraser AG, Ahringer J. Effectiveness of specific RNA-mediated interference through ingested double stranded RNA in C. elegans. Genome Biol. 2001;2:1–10.Google Scholar

Copyright

© The Author(s). 2018

Comments

By submitting a comment you agree to abide by our Terms and Community Guidelines. If you find something abusive or that does not comply with our terms or guidelines please flag it as inappropriate. Please note that comments may be removed without notice if they are flagged by another user or do not comply with our community guidelines.

Advertisement
